Countertops for birthing suites, nurseries and neonatal rooms, each built around the Corian® 5315 Baby Bath from the Care Collection, integrated into the top with no rim and no sealant line. Set the run, the walls, the splash and the edge; choose the bath’s color and where it sits, and the configurator draws the piece and its fabrication spec sheet.
Guided steps: length, width, material, thickness and edge profile — with a live drawing at every step.
Your configuration is reviewed and a firm quote comes back within one business day, with drawings for approval.
Made to your exact dimensions and shipped ready to install.
Every top is drawn to your room — its length and depth, the walls and splash runs, the edge and which sides carry it — with the 5315 Baby Bath placed and dimensioned in it, captured as a fabrication-ready spec sheet.
| Material | Solid surface · DuPont Corian® |
|---|---|
| Applications | Labor and delivery rooms, mother-baby units, hospital nurseries |
| Edge profiles | Eased, bevel, bullnose, cove, ogee, Roman ogee |
| Edge build-up | Laminated build-up from 1-1/2 inch solid stock up to a 4 inch finished edge |
| Sink options | Integrated seamless solid surface bowl, or an undermount cutout to your basin |
| Backsplash | Coved or applied, height and profile to specification |
| Seams | Chemically bonded and sanded flush — inconspicuous on long runs |
| Dimensional tolerance | machine accuracy |
| Deliverable | Dimensioned fabrication-ready spec sheet with plan, profile and cutout detail |
| Made in | United States |
Three measurements cover most runs. Send a photo with your rough numbers and we’ll confirm the drawing before anything is cut.
Measure the run left to right for length and front to back for depth, including any overhang past the cabinet face. Any length to 144″ and any depth to 30″, in half-inch steps.
Note which sides meet a wall. That sets where the backsplash runs go and which edges can take a profile — an edge against a wall is left square.
Note where the bath should sit along the run — centred, or offset toward one end. The 5315 is 24″ × 14″ overall, so the top must be at least 30″ long and 21″ deep.
A Corian® healthcare lavatory from the Care Collection, made for bathing newborns: 24″ × 14″ overall, 22-1/2″ × 12-1/2″ inside, 6-1/8″ deep, with a 1-3/4″ drain at the deep end and an integral left-side overflow as standard.
Yes. It is integrated into the top — bonded and finished with no rim and no sealant line, so there is no joint to harbour bacteria. Every top in this configurator carries one.
Glacier White, Cameo White, Bone and Bisque — color- and translucency-matched to sheet of the same name for a continuous appearance.
Corian® solid surface is non-porous and, with proper cleaning, resists mold, mildew and stains. The 5315 complies with CSA B45.5/IAPMO Z124, and Corian® plumbing products are UL-listed to the Uniform and International Plumbing Codes.
At least 30″ long and 21″ deep to take the bath and its clearances; any length to 144″ beyond that.
Every countertop is made to your exact dimensions, cut to machine accuracy.

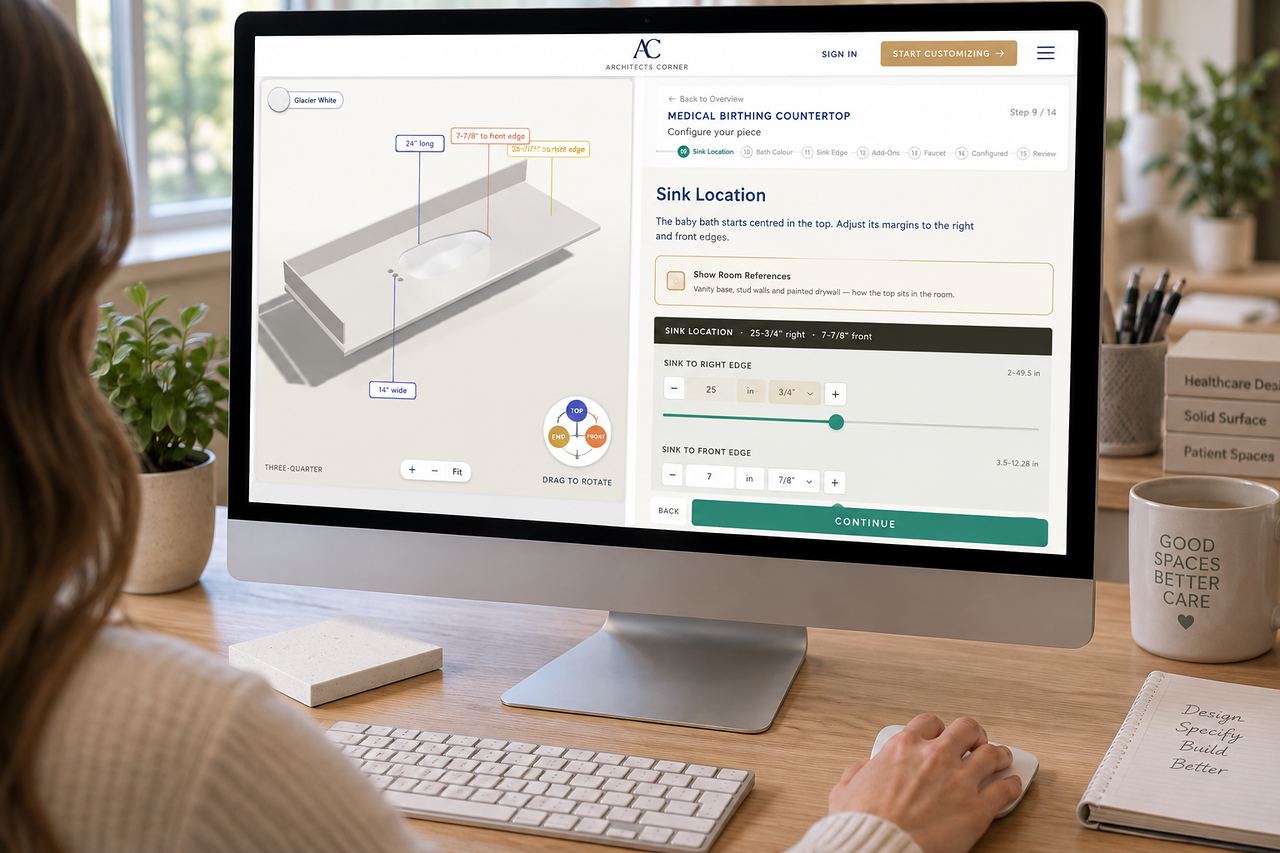

A few guided steps, a live 3D drawing, and a fabrication-ready spec sheet.

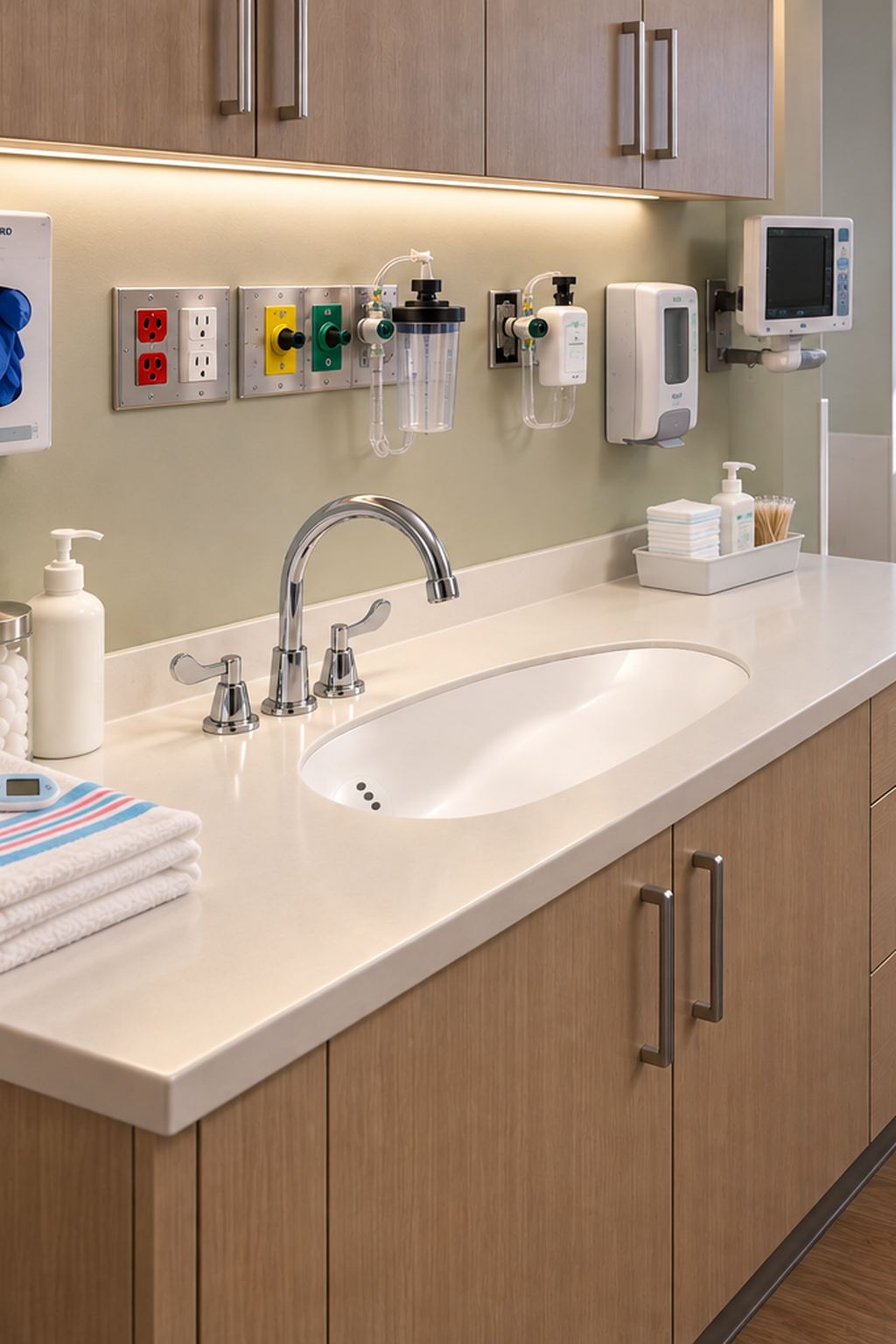

Medical birthing countertops — for birthing suites, mother-baby units, nurseries and neonatal rooms — made to your exact size in Corian® solid surface, each one built around the Corian® 5315 Baby Bath from the Care Collection. The bath is integrated into the top, bonded and finished with no rim and no sealant line, so there is no joint across the working surface.
A healthcare lavatory made for bathing newborns: 24″ × 14″ overall, 22-1/2″ × 12-1/2″ inside and 6-1/8″ deep, with a 1-3/4″ drain at the deep end and an integral left-side overflow as standard. It comes in Glacier White, Cameo White, Bone and Bisque, color- and translucency-matched to sheet of the same name. The 5315 complies with CSA B45.5/IAPMO Z124, and Corian® plumbing products are UL-listed to the Uniform and International Plumbing Codes.
The top needs to be at least 30″ long and 21″ deep to take the bath and its clearances, and can run to 144″ beyond that. Set the length and depth, which sides meet a wall, the splash runs and the edge profile, and place the bath where the room wants it.
Eased, bevel, bullnose, cove, ogee and Roman ogee on the front edge, from solid stock up to a laminated build-up. The backsplash is coved or applied, to the height and profile you specify. Seams are chemically bonded and sanded flush, so a long run reads as one continuous piece.
Corian® solid surface is non-porous and seamless, easy to clean and disinfect, and repairable in place — a scratch or a scuff is sanded out rather than replaced. With proper cleaning it resists mold, mildew and stains.

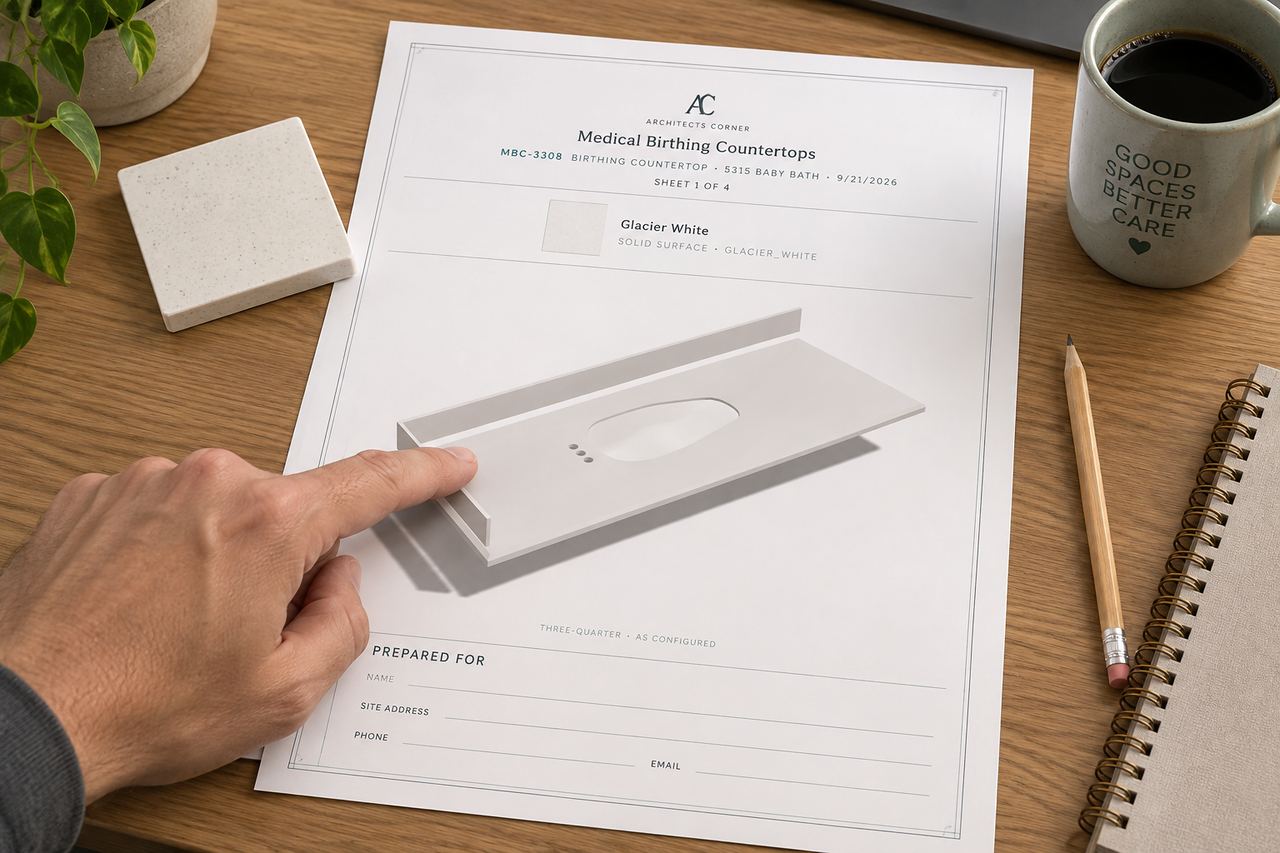

Configure the top online and the configurator draws it live with the bath placed and dimensioned in it, then produces a fabrication-ready spec sheet: the plan, the edge section and the bath cutout detail. We confirm the drawing before anything is cut.
